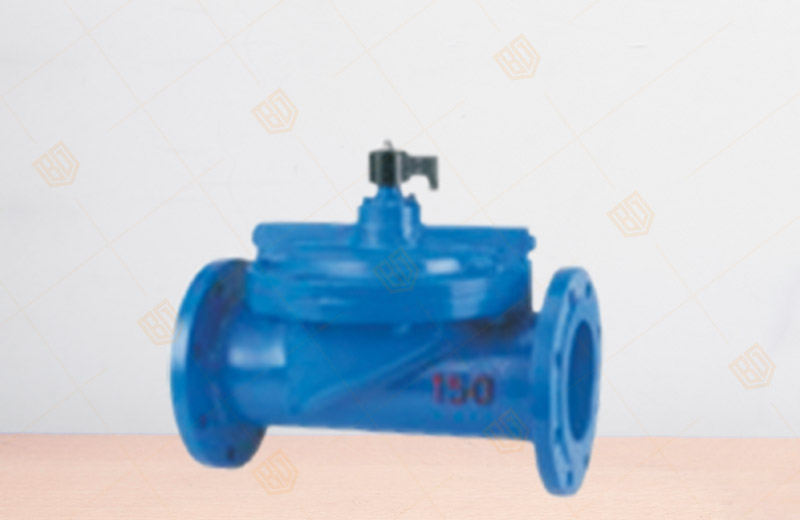

DF-F Flanged Large Diameter Liquid,pneumatic Solenoid Valve
Product overview
Product model: DF-F
Applicable medium: liquid, water, gas, oil (below 20CST)
Medium temperature: -5 ~ 80℃
Mode of action: pilot type
Pressure: normally closed: 0.3~12bar2
Normally open: 0.3~8bar2
Body material: cast iron (precision casting)
Diaphragm type seal, seal material: nitrile rubber (NBR)
Coils protection coefficient: iron coil IP54
DF-FFlanged Large Diameter Liquid,pneumatic Solenoid Valve size：
|
Model |
Flange D |
Flange D1 |
Flange D2 |
|
DF-40F |
150 |
Φ110 |
4-Φ18 |
|
DF-50F |
165 |
Φ125 |
4-Φ18 |
|
DF-65F |
185 |
Φ145 |
4-Φ18 |
|
DF-80F |
200 |
Φ160 |
8-Φ18 |
|
DF-100F |
220 |
Φ180 |
8-Φ18 |
|
DF-125F |
250 |
Φ210 |
8-Φ18 |
|
DF-150F |
285 |
Φ240 |
8-Φ22 |
|
DF-200F |
340 |
Φ295 |
12-Φ22 |
|
DF-65jF |
185 |
Φ145 |
4-Φ18 |
|
DF-80jF |
200 |
Φ160 |
8-Φ18 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the DF-F Flanged Large Diameter Liquid,pneumatic Solenoid Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
